Google Cloud Storage Ingress Setup Guide

A guide to set up your pipeline with Google Cloud Storage (GCS) Ingress.

Prerequisites

To use Google Cloud Storage within your Pipelines, you will need to have the following:

1. Datastreamer Portal account with access to add a new component.
2. Google Cloud Service Account.
3. The bucket exists. Bucket names are globally unique.
4. Ensure the provided Service Account has the following access permissions to the bucket:
   1. Storage Object Viewer: View objects, their metadata (excluding ACLs), and list bucket contents.
   2. Storage Legacy Bucket Reader: List bucket contents, read bucket metadata (excluding IAM policies), and read object metadata when listing.

Here is how to get a Google Cloud Service Account https://cloud.google.com/iam/docs/keys-create-delete.

Setup Instructions

Step 1: Open the target Pipeline within Portal

You can create a new Pipeline or open an existing Pipeline within the Portal.

Step 2: Add a Google Cloud Storage Ingress component from the selection menu

Click on the Ingress (+) button and select the component Google Cloud Storage on the side panel menu.

Step 3: Configure the component

Next, click on the Configure button, and a list of properties will be displayed on the side panel.

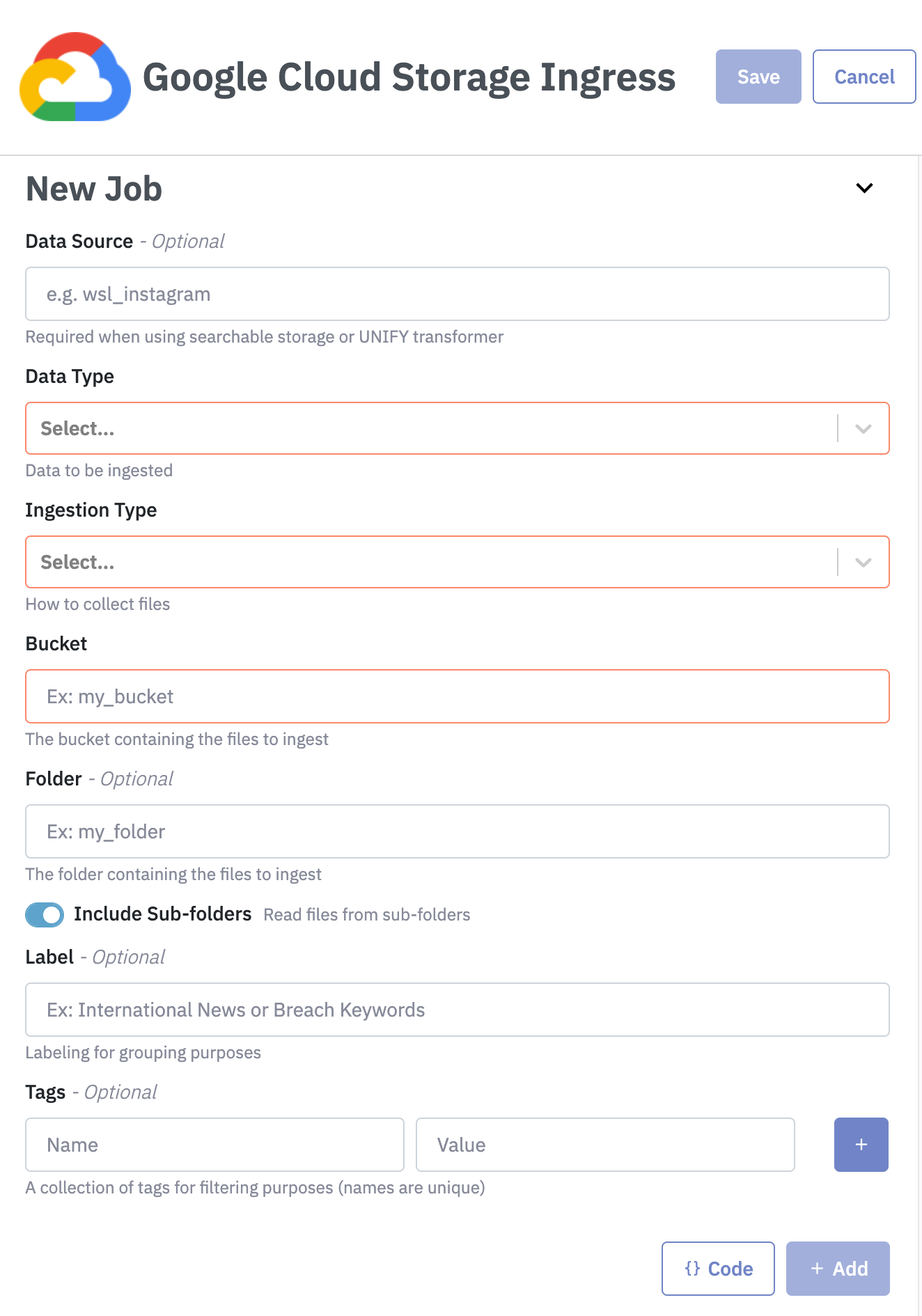

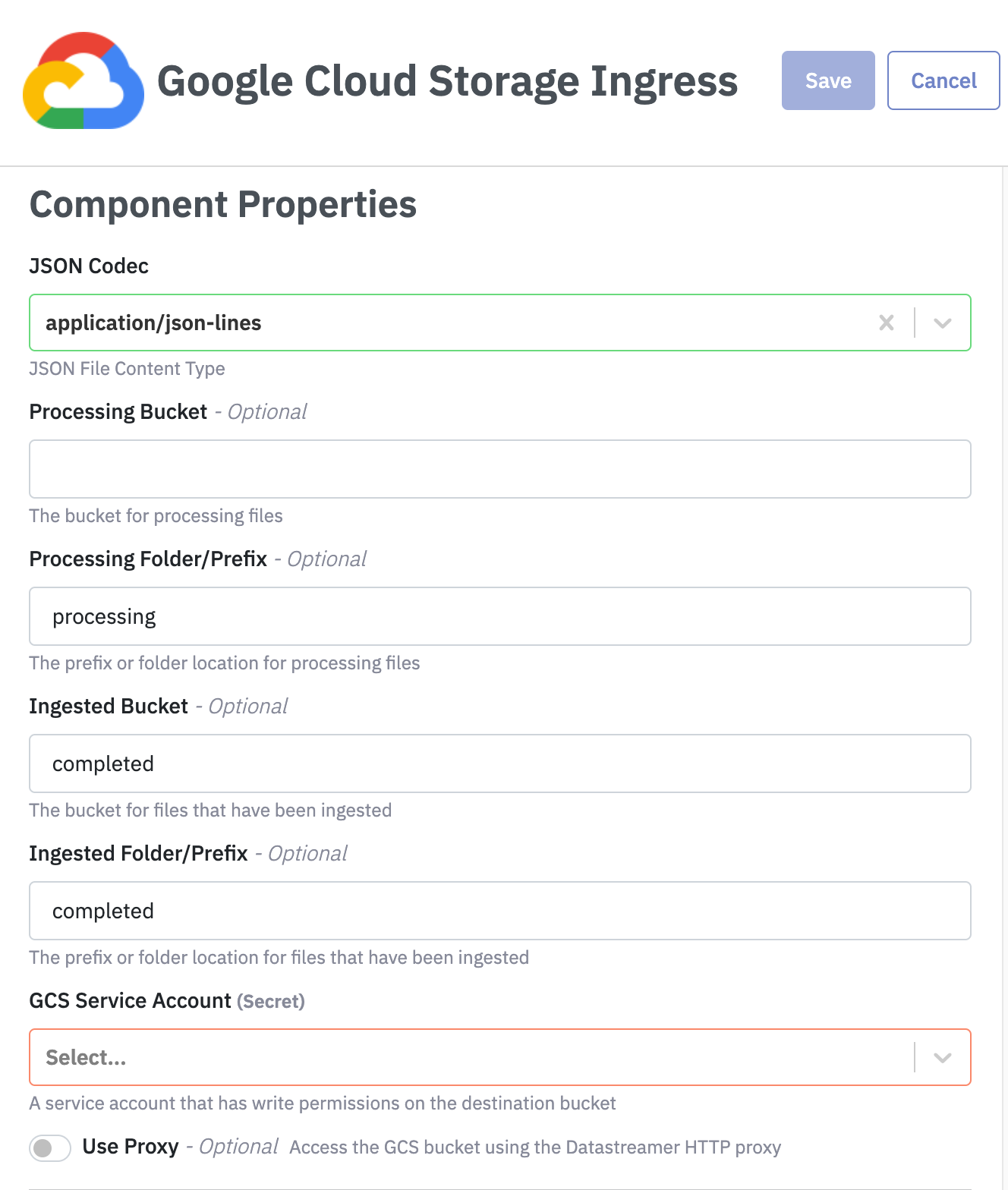

The configuration is divided into 2 parts: the Component Properties and the Jobs. Component Properties must be configured before deploying the pipeline. Jobs, on the other hand, can be configured before or after the pipeline is deployed.

Step 4: Deploy your Pipeline

Upon deployment, this Pipeline is fully ready to consume and process data. Deploying generally takes 10-30 seconds for full rollout and diagnostics.

More details on Pipeline deployment is available here: Docs: Pipeline Deployoment
